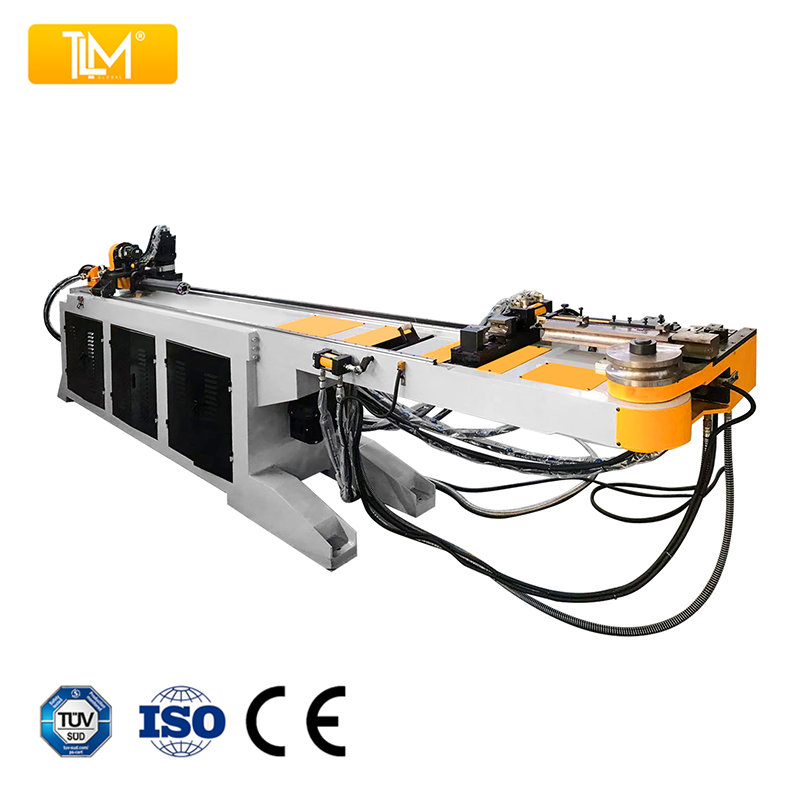

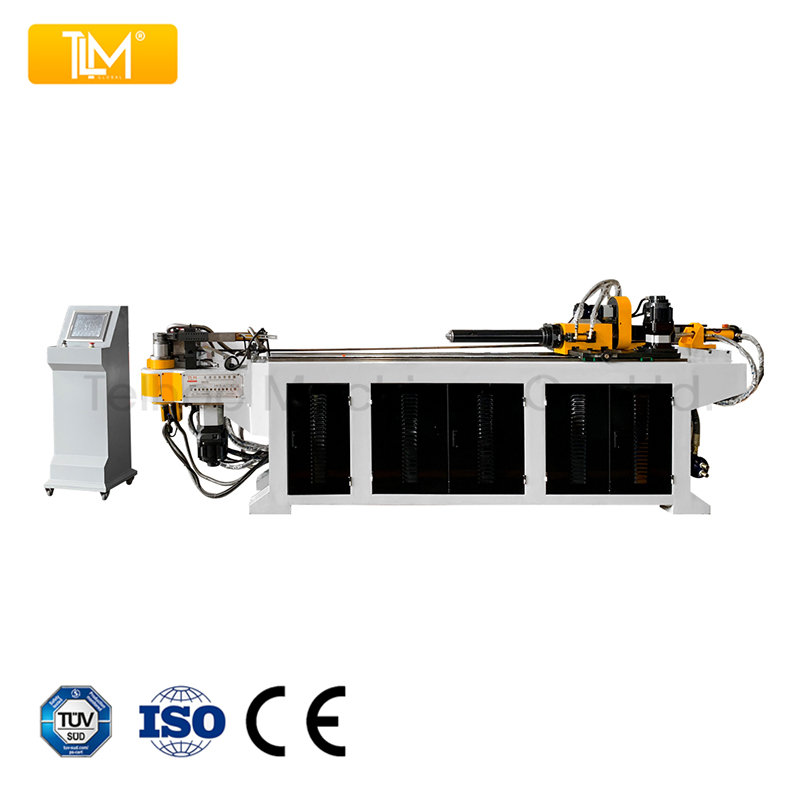

Pipe Bending Machine 38CNC

  • Fully automatic pipe bending machine. Electric pipe bending (optional hydraulic), electric pipe feeding, electric rotating pipe, hydraulic clamping pipe, hydraulic moving mandrel.
    Touch screen with English or other languages, PLC controller (optional for Windows XP industrial PC). Fan/water/oil cooling for your choice. With automatic lubrication function.
Direct supply from the manufacturer
Order phone:+86-13915462929
E-mail:sales@telhoopipebender.com

    SPECS

    CNC Fully automatic
    TR Three stacks
    R Rolling function
    LR Left and right two direction bending

    Max bending Φ38.1X2 mm
    Mandrel length 3000 mm
    Bending speed 30-100 °/s
    Feeding speed 25-900 mm/s
    Rotating speed 30-200 °/s
    Bending precision ±0.1°
    Feeding precision ±0.1 mm
    Rotating precision ±0.1°
    Max bending degree 190°

    Working light
    Input data of Y, B, C or X, Y, Z
    Automatic lubrication system
    Pipe material: mild steel, stainless steel, copper, aluminum ...
    Round / square / rectangle / profile ... pipes and bars
    CE, ISO90001, UL, EAC marked


    OPTIONAL

    Safty cover
    Auto mandrel lubrication system
    Air conditioner cooling system
    Robot loading and unloading
    3D bending simulation, can read CAD files
    Safe blanket / Infrared alarm device

    TOOLS

    Standard tool: 45# steel

    Optional tool: Cr12 material
    Stainless steel pipe: Aluminum copper alloy steel
    Aluminum pipe: bend die, and clamp die - nylon material

    Standard: Sealing ring, sensors, spanner, operation manual
