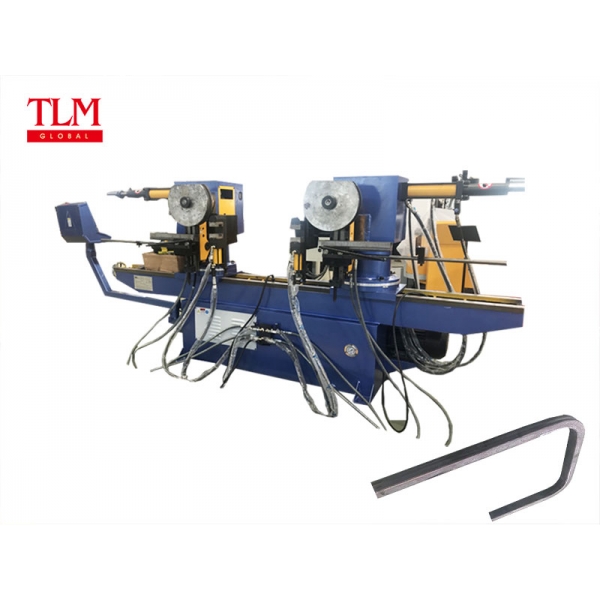

SW38A Double Head Bending Machine

  • Bending by hydraulic. 90 degree head rotation for 3D bending. It is able to make 2 bends X Multiple tubes simultaneously. Stationary clamps to maintain the tube in position before bending.
Direct supply from the manufacturer
Order phone:+86-13915462929
E-mail:sales@telhoopipebender.com

    SPECS

    Max bending Φ38X2 mm (carbon steel)

    Capacity of bending Φ38 mm X 1 pipes
    Φ25 mm X 2 pipes
    Φ16 mm X 3 pipes
    Φ13 mm X 4 pipes
    Distance between two bends 140-1450 mm (custom made)
    Bending speed 74 °/s
    Bending precision ±0.1°
    Max bending degree 185°

    Working light
    Water cooling
    Pipe material: mild steel, stainless steel, copper, aluminum ...
    Round / square / rectangle / profile ... pipes and bars
    CE, ISO90001, EAC, UL marked

    OPTIONAL

    L Auto loading device
    P Punching before bending
    Q Quadruple head

    Head can be moveable automatically
    Auto loading device
    Fan / Water / Oil cooling system
    Special distance between two bends, from 80mm to 8000mm as optional

    TOOLS

    Standard tool: 45# steel

    Optional tool: Cr12 material
    Stainless steel pipe: Aluminum copper alloy steel
    Aluminum pipe: bend die, and clamp die - nylon material

    Standard: Sealing ring, sensors, spanner, operation manual
