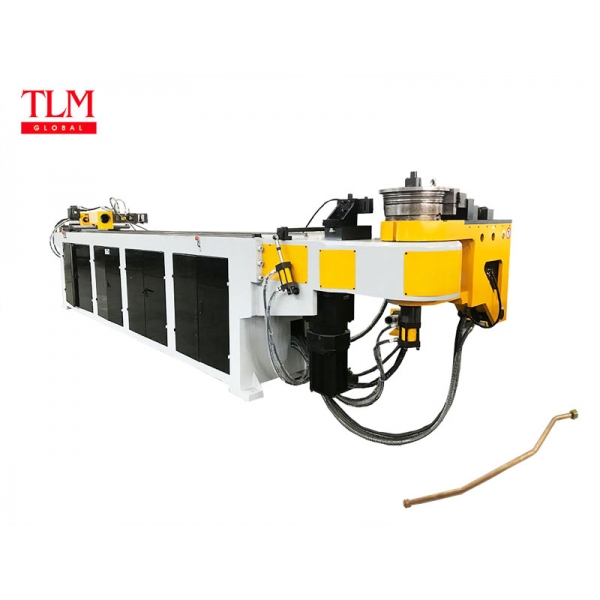

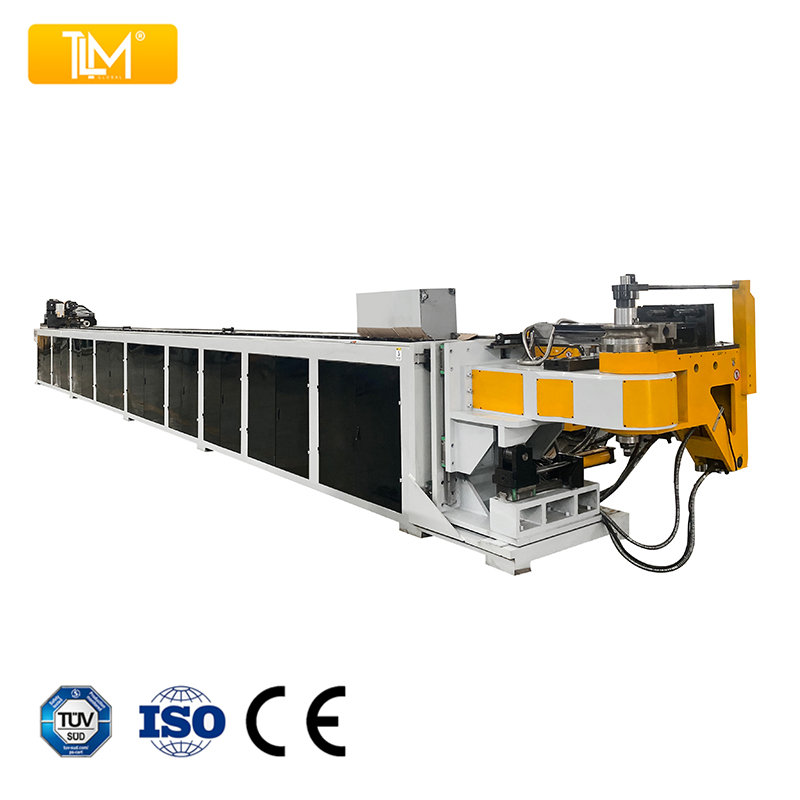

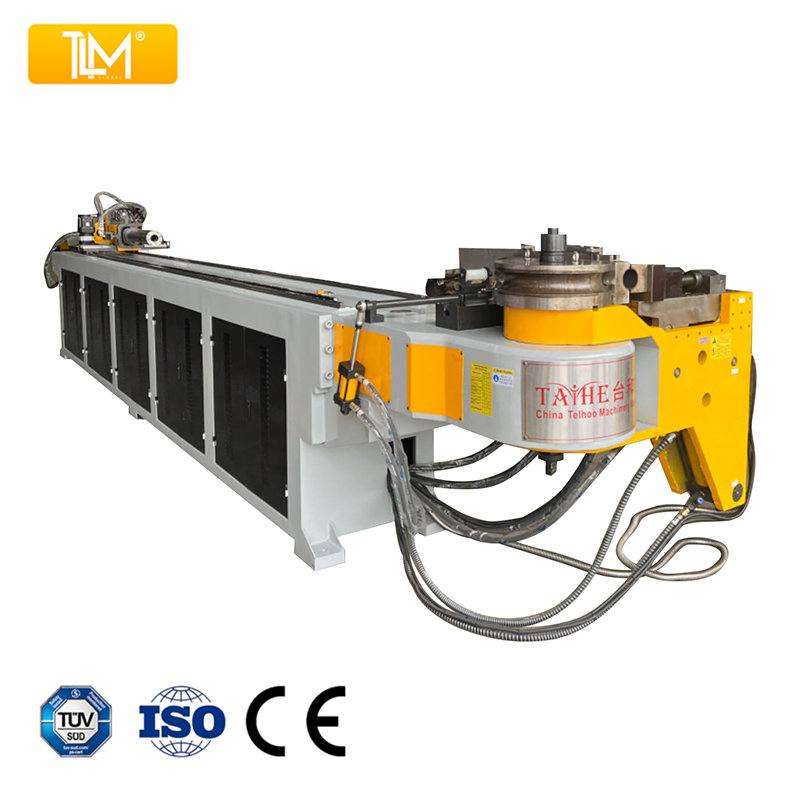

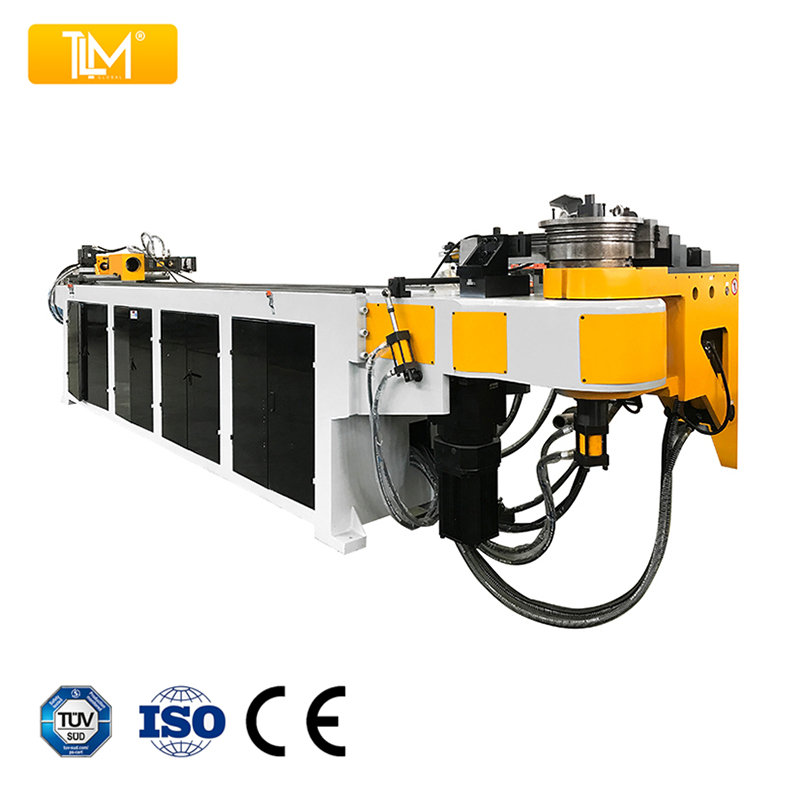

Pipe Bending Machine 89CNC

  • It is fully automatic pipe bending machine. Bending pipe by electric (hydraulic as optional), feeding pipe by electric, rotating pipe by electric, clamping pipe by hydraulic, mandrel shift by hydraulic.
    Touch screen with English or any other language, PLC controller (Windows XP Industry PC as optional). Fan / water / oil cooling for your choice. With auto lubrication function.
Direct supply from the manufacturer
Order phone:+86-13915462929
E-mail:sales@telhoopipebender.com

    SPECS

    CNC Fully automatic

    SR Single radius
    H Hydraulic bending

    Max bending Φ88.9X3 mm
    Mandrel length 3800 mm
    Bending speed 15-32 °/s
    Feeding speed 20-700 mm/s
    Rotating speed 20-150 °/s
    Bending precision ±0.1°
    Feeding precision ±0.1 mm
    Rotating precision ±0.1°
    Max bending degree 190°

    Working light
    Input data of Y, B, C or X, Y, Z
    Automatic lubrication system
    Pipe material: mild steel, stainless steel, copper, aluminum ...
    Round / square / rectangle / profile ... pipes and bars
    CE, ISO90001, UL, EAC marked

    OPTIONAL

    DR Double radius
    TR Triple radius
    QR Quadruple radius
    MR Multi radius
    LR Left and right direction bending
    R Rolling / Pushing
    P Punching
    C Cutting

    Safty cover
    Bend 1.0XD radius, or more tight radius
    Auto mandrel lubrication system
    Fan / Water / Oil cooling system
    Robot loading and unloading
    Windows XP controller
    Industry PC (3D tube showing, function of mirror image and reverted image)
    3D bending simulation, can read CAD files
    Safe blanket / Infrared alarm device

    TOOLS

    Standard tool: 45# steel

    Optional tool: Cr12 material
    Stainless steel pipe: Aluminum copper alloy steel
    Aluminum pipe: bend die, and clamp die - nylon material

    Standard:Sealing ring, sensors, spanner, operation manual
