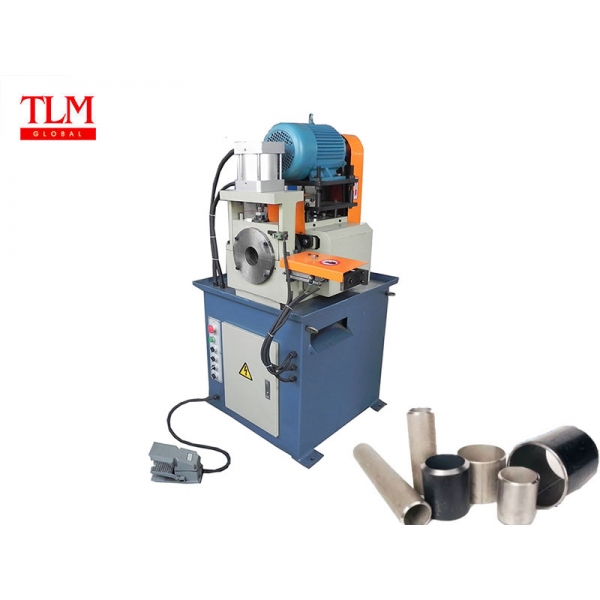

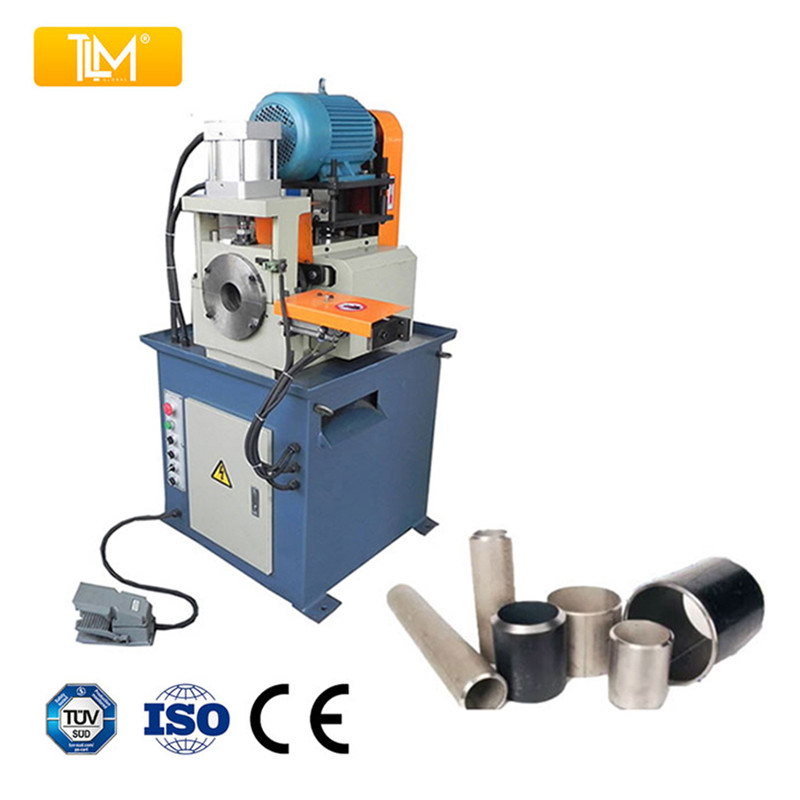

50 Pneumatic Pipe End Forming Machine
- Feeding / retracting and clamping by pneumatic / hydraulic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results.
- Direct supply from the manufacturer
- Order phone：+86-13915462929
- E-mail：sales@telhoopipebender.com
SPECS
P Pneumatic type
H Hydraulic typeCapacity Pipe Φ8 - 50 mm
Bar Φ10 - 50 mm
Cutterhead Φ12 - 80 mm
Spindle Motor 2 HP x 4 P
Spindle Speed 800 / 1600 Round / min
Air Pressure 6 - 8 kg / cm2, 120 ml / min, 0.6 - 0.8 Mpa
Machine size 870 x 690 x 1100 mm
Machine weight 260 kgs
Pipe material: steel, iron, stainless steel, aluminum, bronze,
non-ferrous metal, plastic and graphite fiber ...
Round pipe and bar
CE, ISO90001, EAC, UL marked
OPTIONAL
Cutterhead Φ3.2 - 12 mm
Auto loading
Custom circular clamping mold
