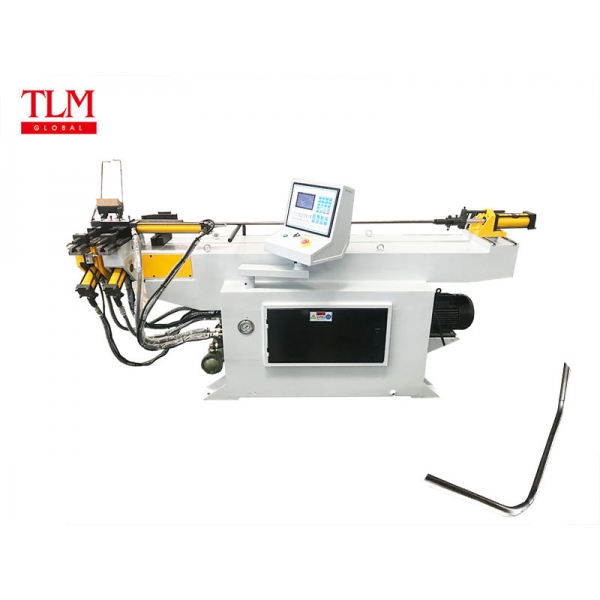

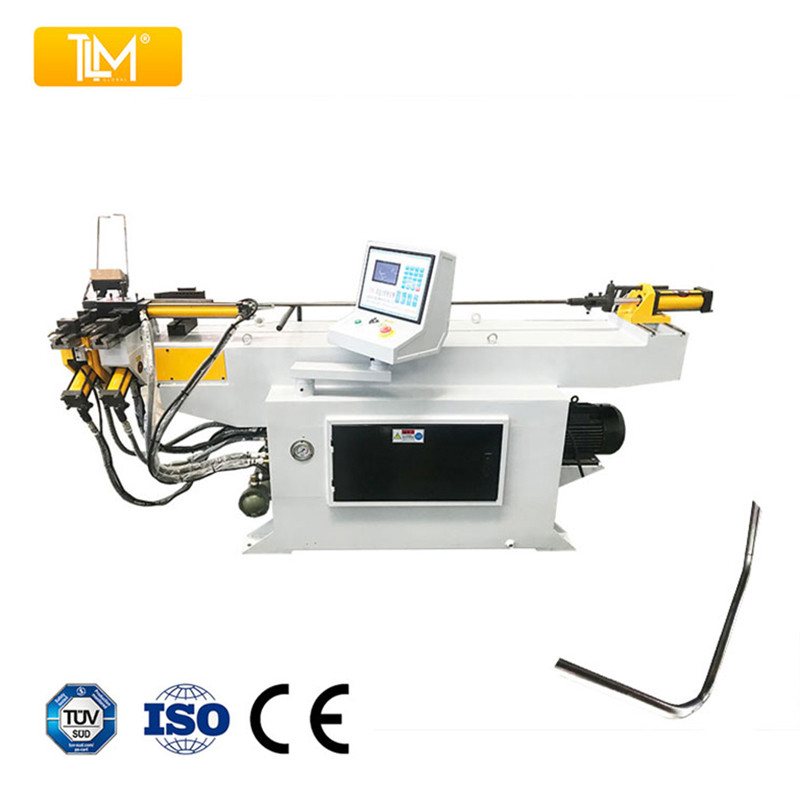

50NC NC Semi-Automatic Tube Bender

  • Semi-automatic pipe bending machine. Bending pipe by hydraulic, feeding pipe by hand, rotating pipe by hand (electric as optional), clamping pipe by hydraulic, mandrel shift by hydraulic. High bending accuracy up to +/-0.1°. The head of machine is casting. With Taiwan core tech since 1989.
    Microcomputer controller with English or any other language. Fan / water / oil cooling for your choice.
Direct supply from the manufacturer
Order phone:+86-13915462929
E-mail:sales@telhoopipebender.com

    SPECS

    Max bending Φ50.8X2 mm

    Mandrel length 2250 mm
    Bending speed 40 °/s
    Bending precision ±0.1°
    Max bending degree 185°

    Working light
    Water cooling
    Pipe material: mild steel, stainless steel, copper, aluminum ...
    Round / square / rectangle / profile ... pipes and bars
    CE, ISO90001, EAC, UL marked

    OPTIONAL

    MP Auto rotating pipe
    L Left direction bending
    P Punching
    C Cutting

    Safty cover
    Stopper (length measurement)
    Fan / Water / Oil cooling system
    Bend 1.0XD radius, or more tight radius
    Tie rod bars (support arm)

    TOOLS

    Standard tool: 45# steel
    Optional tool: Cr12 material
    Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
    Aluminum pipe: bend die, clamp die and pressure die - nylon material
    Standard: Sealing ring, sensors, spanner, operation manual
