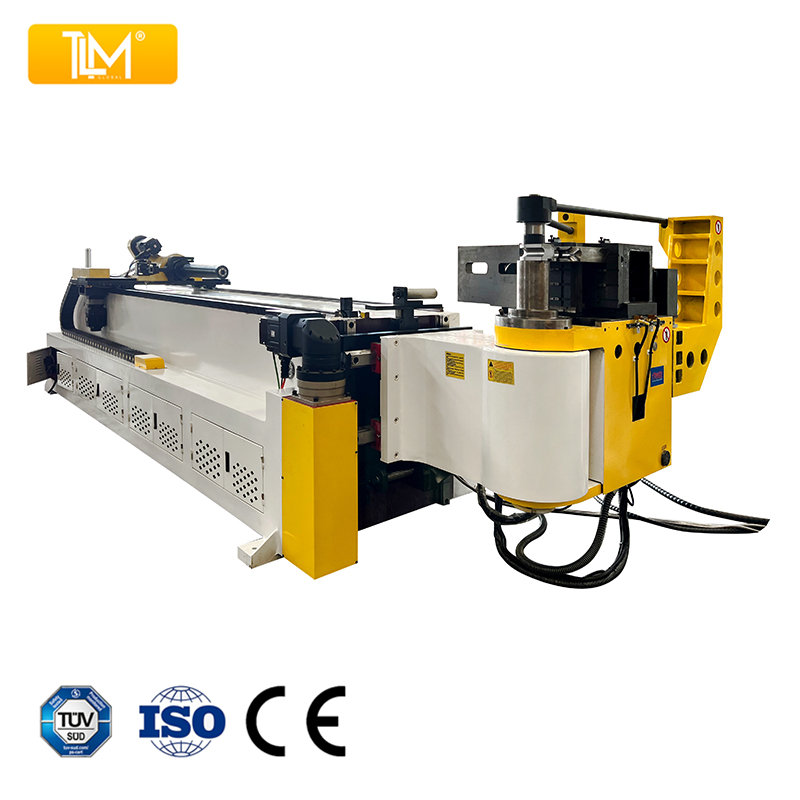

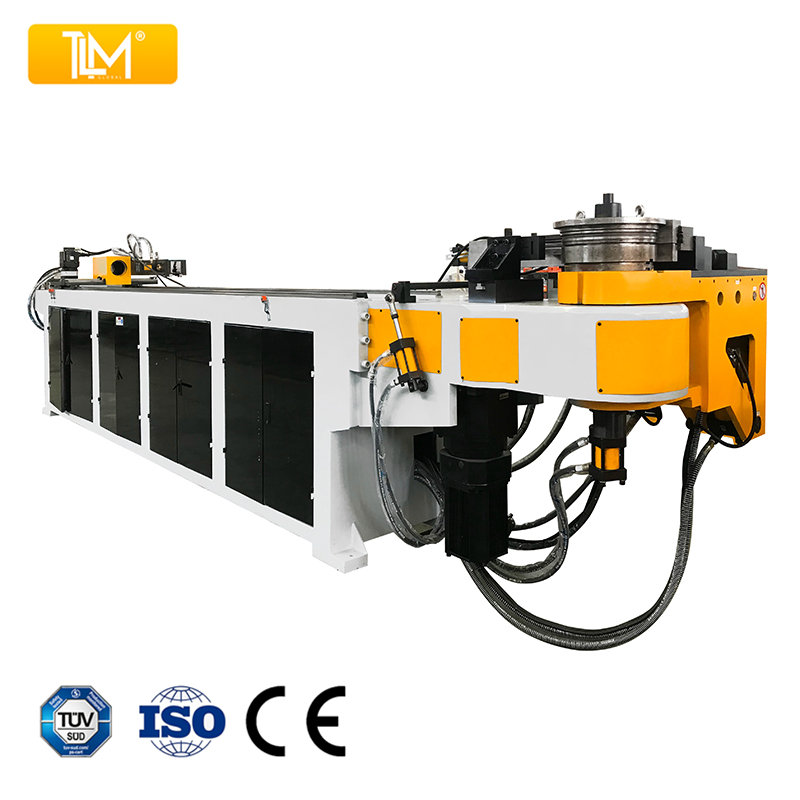

Pipe Bending Machine 75CNC
- Fully automatic pipe bending machine. Electric pipe bending (optional hydraulic), electric pipe feeding, electric rotating pipe, hydraulic clamping pipe, hydraulic moving mandrel.
Touch screen with English or any other language, PLC controller (optional for Windows XP Industrial PC).
- Direct supply from the manufacturer
- Order phone：+86-13915462929
- E-mail：sales@telhoopipebender.com
SPECS
CNC Fully automatic
SR Three stacks
R Rolling function
LR Left and right two direction bending
Max bending Φ76.2X3 mm
Mandrel length 3800 mm
Bending speed 20-35 °/s
Feeding speed 200-700 mm/s
Rotating speed 25-180 °/s
Bending precision ±0.1°
Feeding precision ±0.1 mm
Rotating precision ±0.1°
Max bending degree 190°
Working light
Input data of Y, B, C or X, Y, Z
Automatic lubrication system
Pipe material: mild steel, stainless steel, copper, aluminum ...
Round / square / rectangle / profile ... pipes and bars
CE, ISO90001, UL, EAC marked
OPTIONAL
DR Double radiusTR Triple radius
QR Quadruple radius
MR Multi radius
LR Left and right direction bending
R Rolling / Pushing
P Punching
C Cutting
Safty cover
Bend 1.0XD radius, or more tight radius
Auto mandrel lubrication system
Fan / Water / Oil cooling system
Robot loading and unloading
Windows XP controller
Industry PC (3D tube showing, function of mirror image and reverted image)
3D bending simulation, can read CAD files
Safe blanket / Infrared alarm device
TOOLS
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die - nylon material
Standard: Sealing ring, sensors, spanner, operation manual
