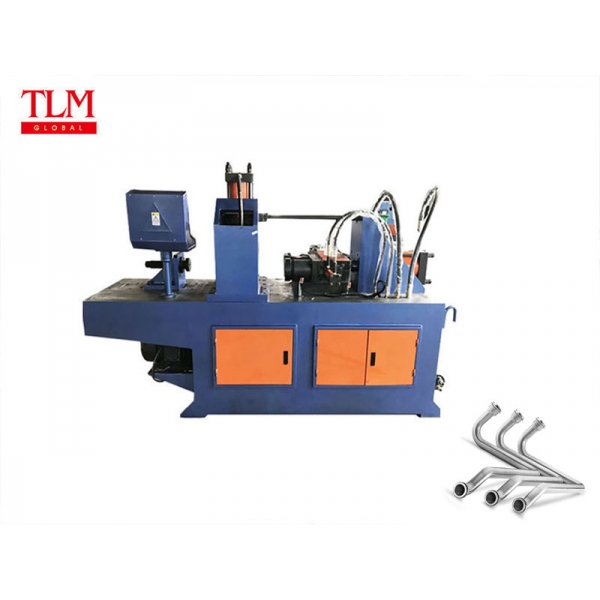

SG80-2 Tube End Forming Machine

  • Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic.
Direct supply from the manufacturer
Order phone：+86-13915462929
E-mail：sales@telhoopipebender.com

    SPECS

    One station

    Max forming Φ80 X 2 mm
    Forming length 170 mm
    Pressure 12 Mpa
    Forming speed 130 mm / 5 seconds

    Working light
    Pipe material: mild steel, stainless steel, copper, aluminum ...
    Round / square / rectangle ... pipes
    CE, ISO90001, EAC, UL marked

    OPTIONAL

    II Two station
    III Three station
    IV Four station

    Double head forming
    Safty cover
    Infrared alarm device

    TOOLS

    Standard tool : Cr12 material
    Standard: Sealing ring, sensors, spanner, operation manual
